The economic and efficient recovery of clean metals such as scrap iron, aluminum, stainless steel (VA), copper, brass, zinc and metal alloys is the focus of scrap metal processing.
Screening machines from SPALECK help you to classify the input material according to size. You benefit from our 3D screen linings, for example. They keep your target fraction free of unwanted long parts.
We also tailor our screening machines, ActiveFeed feed hoppers and conveyor chutes optimally to your recycling process, the shredding and sorting technology used and the special requirements of your material.
SPALECK: BEST SCREENING. BEST SORTING.
+1 412 294 2494
+1 603 715 8972
+1 281 965 9656+1 603 715 8972
+1 309 354 1114+1 603 715 8972
+1 309 354 1114+ 49 162 349 31 96+1 603 715 8972
+1 309 354 1113+1 603 715 8972
+1 309 354 1113+1 603 715 8972
In practice, a distinction is usually made between light (3-6 mm thick) and heavy shear scrap (over 6 mm thick) – so-called E1 and E3 steel scrap in defined dimensions. There are also various other types of steel scrap. Typical raw materials include pipes, crash barriers, sheet piling, sheet steel and railroad tracks. But industrial waste, scrap steel, reinforcement iron and industrial and heating systems are also included.
Shredder scrap, also known in practice as shredder steel scrap(E40), is obtained by shredding metals and their compounds using magnetic separation (magnetic drums). Shredder steel scrap is magnetic ferrous scrap with a defined bulk density and dimensions. After the magnetic steel scrap has been recovered, the shredder heavy fraction containing aluminum, copper, stainless steel, metallic composites and other metals remains for further processing. Both the heavy and shredder light fractions also contain a mixture of plastics, wood, glass, rubber and other non-ferrous metals.
Recycling aluminum scrap involves the recovery and reuse of clean old aluminum.
Aluminum scrap consists, for example, of aluminum sheets, stamped aluminum remnants, profiles, aluminum castings from automotive recycling, or even car rims or industrial waste such as chips or aluminum foil.
In practice, a distinction is made between post-production and post-consumer aluminum, depending on the “originator”. The latter includes, for example, aluminum cans or aluminum lids from food packaging.
When end-of-life vehicles are shredded, the airworthy light fraction, also known as shredder light fraction or SLF, is often extracted first. The steel and ferrous materials are then separated using magnetic technology. The material that remains after air separation and FE separation is referred to as shredder heavy fraction (SSF or SHF). In North America, the light fraction is usually separated from the magnetic iron fraction after shredding using so-called Z-boxes.

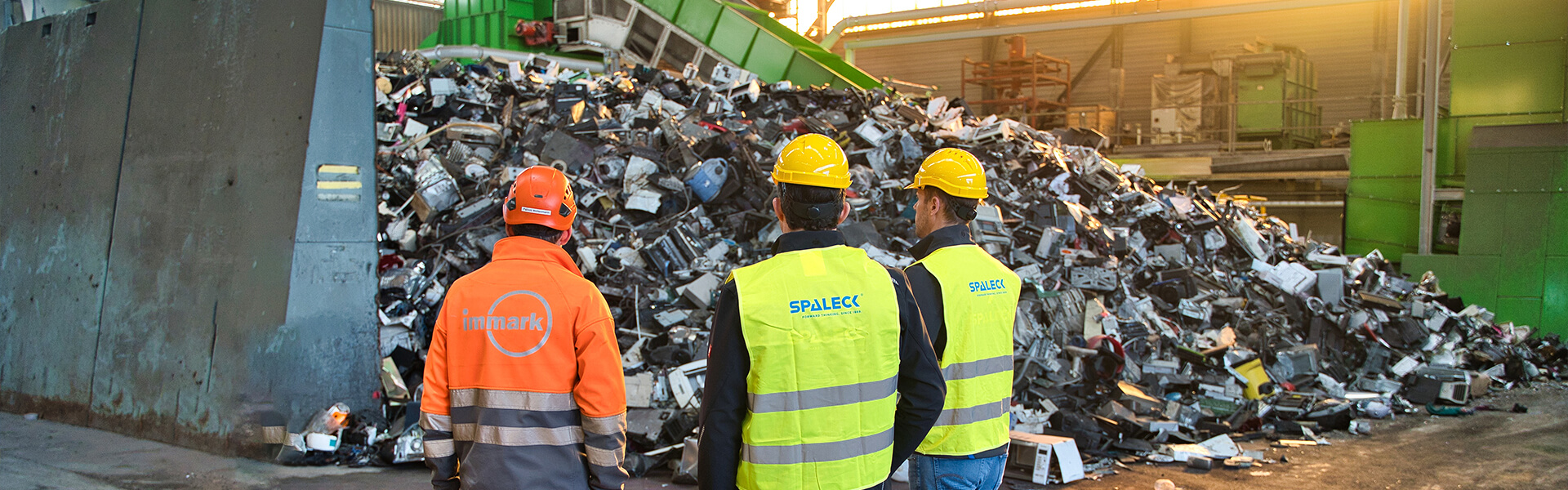

WEEE or electronic waste refers to electrical and electronic appliances and old electrical appliances that are sent for recycling.
The aim is to process old appliances in such a way that the individual components made of metals such as copper, aluminum, precious metals, plastics, circuit boards, etc. can be recycled by type as far as possible. The processes for processing and recovering the various categories of old appliances (refrigerators, small household appliances, monitors, etc.) are specialized and require sophisticated screening and sorting technology in order to obtain unmixed products.
The energy recovery of household waste produces bottom ash, so-called IBA, in the waste incineration plant (WIP). On average, this makes up around 30 % of the input of a waste incineration plant and contains around 90 % minerals, followed by up to 8 % ferrous metals and around 2-3 % non-ferrous metals. The non-ferrous metals also contain interesting proportions of precious metals, which are contained in very specific grain sizes and fractions. Due to the residual moisture content of the material, optimum screening technology and feeding is only something for specialists like SPALECK.
Leading metal recyclers confirm: Thanks to the SPALECK ActiveFEED, our sorting machines are now performing at the next level of sorting!
SPALECK bar sizers are your reliable technology for coarse screening and pre-separation of scrap metal and slag.

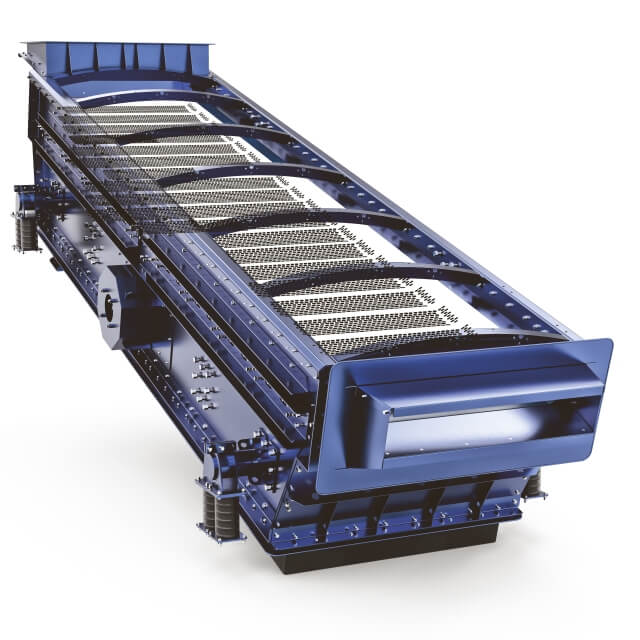

The SPALECK recyclable material screen for metal recycling offers you optimum screen quality, performance and reliability. Thanks to one hundred percent customization to your current – and future – tasks, it guarantees optimum metal recycling.
Our SPALECK 3D COMBI screening machine offers you a high-performance 3D upper deck combined with leading expansion shaft technology in the lower deck. This allows up to 5 screen cuts to be realized with just one machine.
In metal recycling and also in slag processing, the SPALECK flip-flop screen performs first-class work in the economical classification of materials with separation cuts of 0.2 to approx. 50 mm.
% TAILORED TO YOUR APPLICATION
UP TO 5 SCFREENING CUTS
% SUCCESS FOR YOUR PROCESSING
We work with you to develop the optimum solution for your recycling process.
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren
In the animation we show you the functional principle of screening. Here it is a double-deck screening machine. The upper deck is equipped with our 3D screening technology and the lower deck uses expansion shaft screening technology to screen the fines.
Koslov is one of the leading metal processors in Germany. Here you can see an example of a SPALECK single-deck screen for scrap metal.
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

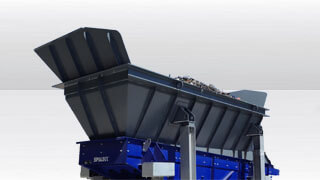

Sorting equipment performs best when the conveyor technology used supplies it correctly. We work with you to define the optimum material feed as early as the planning stage of your system.
Whether stationary or mobile – we will find the optimum solution for your scrap metal processing, as in this example from ASR recycling.
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren
Sand, dirt, impurities or excessively large parts not only increase material wear during shredding, but also pose a direct risk of costly repairs.
Protect your valuable shredding and sorting technology with the right screen cut.
Are your sorting machines really performing as well as they could? Or are the sorting belts under- or overloaded? And do your conveyor troughs enable optimum mono-layer material feed? We would be happy to tell you how you can protect your technology and maximize your yield with 1A screen quality and material feed.
Increasing demands on material qualities, green steel, new markets & competitors and many more factors… With the right technology, you can prepare for this with peace of mind. SPALECK offers you modern screening technology that can also be easily adapted later in the existing machine.
