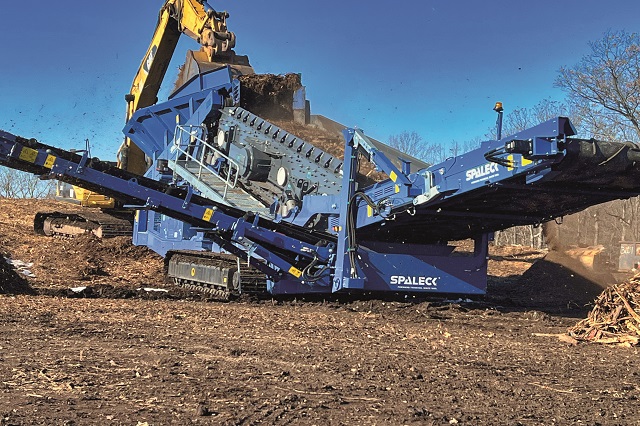

20x5T Mobile screener

spaleck usa 205T mobile screener power hydraulics

Efficiently useable

Power unit and hydraulics

The 205T is equipped with a Cummins engine that boasts a constant speed of 168 kW at 2200 rpm. The hydraulic tank with a capacity of 650L (171US Gal) ensures a long running time of the machine.

Capazities

Maximum utilisation

The hopper can be fitted with either Heavy Duty belt or Paron belts depending on your application. The 20x5T fits a capacity of max 15m³ (19.6 yd3) and thus achieves a throughput of up to 600 tonnes per hour, depending on the material and screen deck.

spaleck usa screening box mobile screening plant

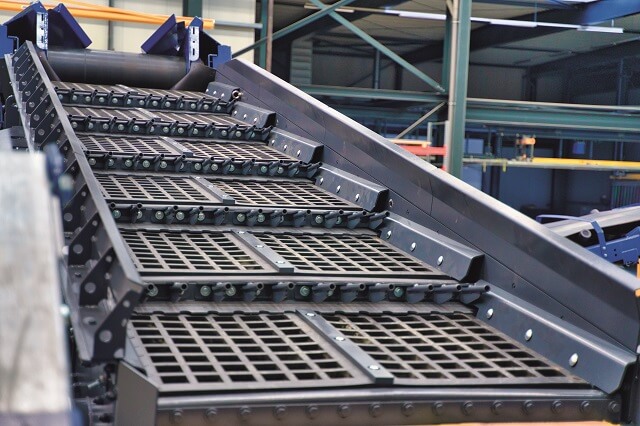

Screenbox 20x5T

Best screening results

Screen dimension upper deck – 6.100mm x 1.520mm (20′ x 5′)
Screen dimension lower deck – 5.900mm x 1.830 (19′ x 6′)
Unique SPALECK Cascade top deckcomplete with turning fingers
High energy Flip-Flow Bottem deck with PU-Mats

205T Conveyor

Efficient processing

Belt feed conveyor 1400mm (55”)
Collection conveyor 1400mm (48”)
Tail conveyor 3765mm (12′ – 4”)
Mid product side conveyor 5265mm (17′ – 3”)
Fine product side conveyor 5095mm (16′ – 9”)

Our new SPALECK 20x5T is equipped with efficient usable belt conveyor

Safety features

Safe work guaranteed

The 205T offers a wide range of safety features to prevent accidents and injuries. With systems for safety shutdown of the motor, full safety cover for nip points and horizontally lowerable side conveyor for maintenance, this mobile screening plant is CE compliant.
