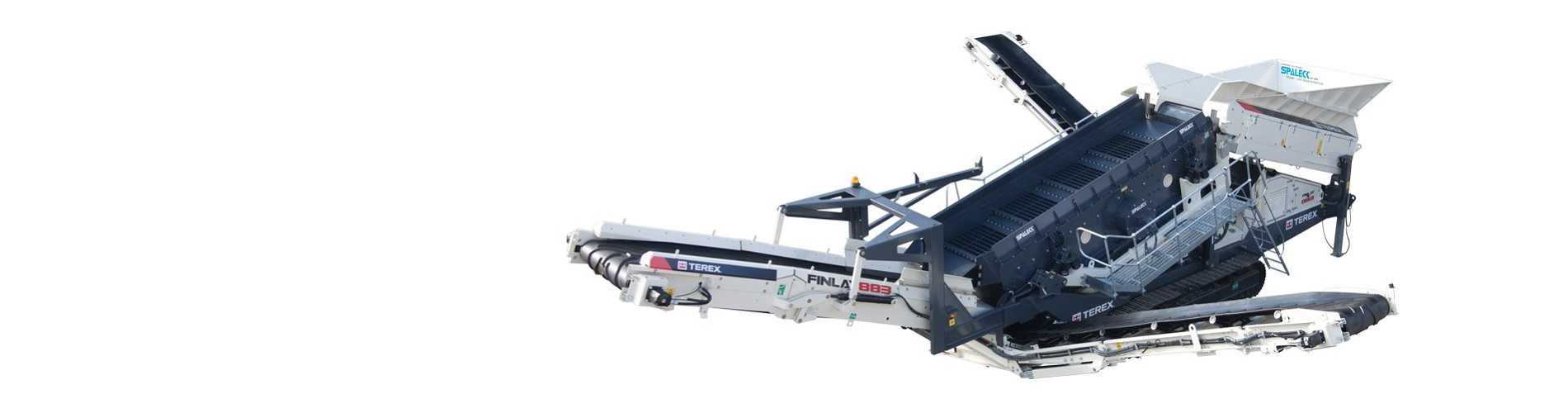

Mobile Screening Plants | T165 Mobile Screener

Your mobile screening plant T165 from SPALECK

The T165 consists of a heavy-duty and high-energy 2-bearing screen box measuring 16′ x 5′. The parallel sides at the discharge end of the screen box prevent clogging, making your work much easier. The T165 can be adapted to your requirements by optionally replacing the heavy-duty hopper for direct feeding with a belt feeder or apron feeder.

Efficiently useable

Power unit and hydraulics

The T165 is equipped with a CAT engine that boasts a constant speed of 98kW at 2200 rpm. The hydraulic tank with a capacity of 415L (110 US Gal) ensures a long running time of the machine.

Capazities

Maximum utilisation

The hopper of the T165 has a capacity of max. 15m³ (19.6 yd3) and thus achieves a throughput of up to 450 tonnes per hour, depending on the material and

Screenbox T165

Best screening results

Screen dimension upper deck – 4,88m x 1,525m (16′ x 5′)
Screen dimension lower deck – 4,675m x 1,525m (15′ x 5′)
Unique Spaleck Cascade top deckcomplete with turning fingers

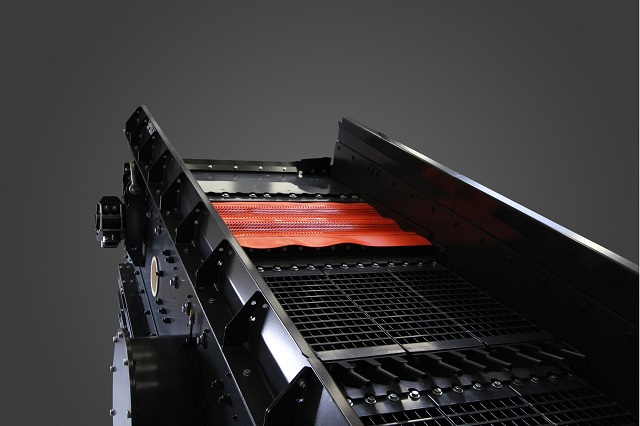

SPALECK Tension shaft cassette for screening machines

T165 Conveyor

Conveyor technology at its best

Belt feed conveyor 1400mm (55”)
Collection conveyor 1200mm (48”)
Tail conveyor 3030mm (10′ – 0”) to 3550mm (11′ – 8”)
Mid product side conveyor 3766mm (12′ – 4”)
Fine product side conveyor 4071mm (13′ – 4”)

Safety features

Safe work guaranteed

To ensure safe handling of the screening unit, various safety functions are integrated. External belt alignment points, motor safety shutdown systems and full safety guarding for nip points are some examples that make the T165 CE compliant.

Maximum safety for your work with SPALECK mobile screening plants

Options

Customised solutions

The T165 can be optimised according to your requirements so that the mobile screening unit fits your needs perfectly. Possible adaptations are, for example:
